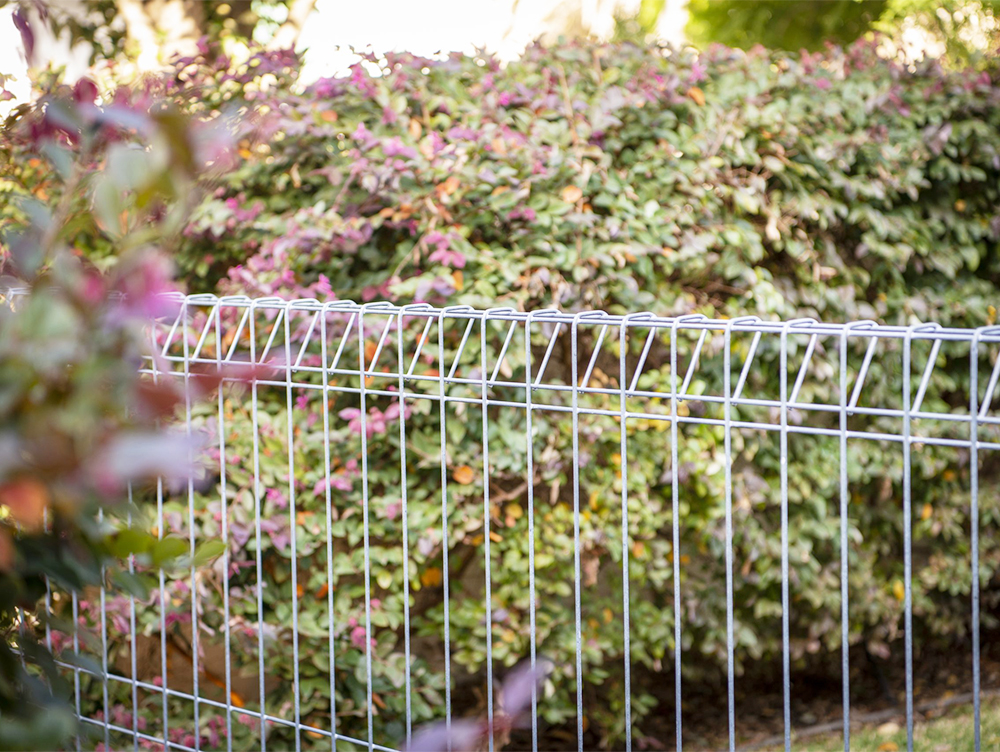

Roll Top Fence
| Budget | ★★★☆☆ |
| Security Level | ★★★★☆ |
| Ease of Installation | ★★★★☆ |
200 RAL Colors, Colors can be customized
Material: Low carbon steel wire
Height: 1-3m
Width: 2-3m
Surface treatment: Hot dipped galvanized, PVC coated, Powder coated
Certificates: ISO9001
Product Description
Roll Top Fence, also known as BRC fence. The fence panel have bends on the top and bottom of fence panel, that could provide additional strength and rigidity, the bends can also increase the beauty of roll top Fence, and the price of 3D Welded Mesh Fence is very economical, so it is very popular and widely used in schools, apartments, factories, parks and other places.
Roll Top Fence are welded from high-quality low carbon steel wire, very strong and durable. There are three kinds of surface treatment of the mesh: hot dip galvanized, PVC coated, Powder coated. The most popular colors are black and green, other RAL colors also can be customized.
Features:
● Strength and rigidity: The fence panel have bends on fence top and bottom, that could provide additional strength and rigidity.
● Beautiful appearance : The bends made the security fence attractive.
● Visibility: The mesh opening is big, so the fence protect against theft and vandalism in the meantime can monitor the external situation.
● Anti-corrosion: There are three kinds of popular surface treatment: hot dip galvanized, PVC coated, Powder coated, our workmanship is exquisite, and the coating is made of high-quality brand powder, which can guarantee that the fence will not rust for 20 years in normal environment.
● Suitable for slopes: Our fence can be adapted to any terrain, if your sites are not flat, such as slopes, it will be very easy to install if use our fence.
Roll Top Fence Panel
The width of panel is 2m-3m, the heights ranging from 600mm to 2440mm, mesh opening and wire diameter also can be customized according to your requirements.
Roll Top Fence Post
There are 2 kinds of installation manner:
1. The post are longer 500mm-800mm than the fence panel, and buried 500mm-800mm post under ground, and the pouring concrete to fix post.
2. Welded the base plate on the bottom of the post, use the expansion screws fix post on concrete base.
Specification
| Mesh Opening | Wire Diameter | Panel Width | Panel Height | Post Type | ||
| 50*100mm 50*150mm 50*200mm 55*150mm 55*200mm | 3.0mm 3.5mm 4.0mm 4.5mm 5.0mm 6.0mm | 2.0m 2.2m 2.5m 2.9m | 0.8m 1.0m 1.2m 1.5m 1.8m 2.0m 2.5m 3.0m | Round Post 48mmOD*1-2mmT 60mmOD*1-2mmT | Square Post 50*50mm*1-2mmT 60*60mm*1-2mmT 80*80mm*1-2mmT | Rectangular Post 40*60mm*1-2mmT 40*80mm*1-2mmT 60*80mm*1-2mmT |
| Surface treatment: Hot dipped galvanized, galvanized +PVC coated, galvanized+powder coated | ||||||
| Hot color: RAL 6005 green, RAL9005 black. All RAL color can be customized | ||||||
| Note: If you want other specification, we can also customized for you | ||||||

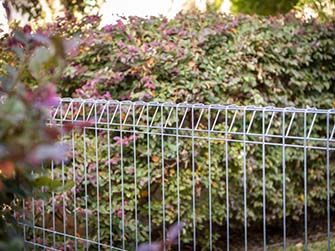

Roll Top Fence

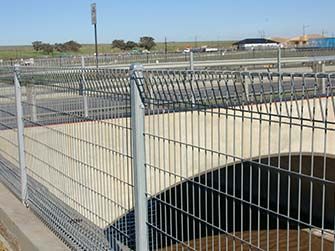

Roll Top Fence

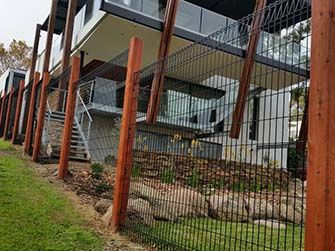

Roll Top Fence

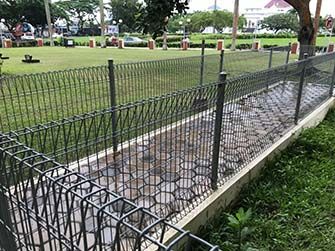

Roll Top Fence

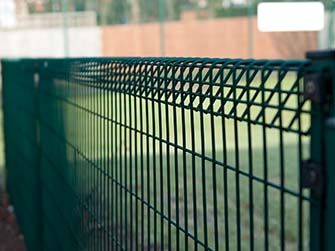

Roll Top Fence

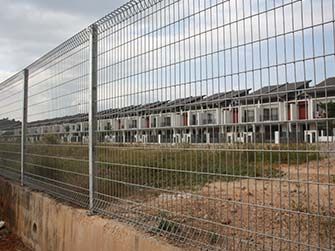

Roll Top Fence
