Gabion Box

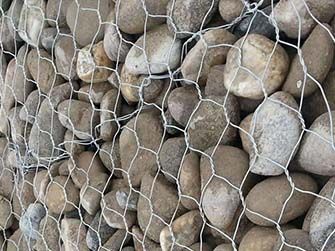

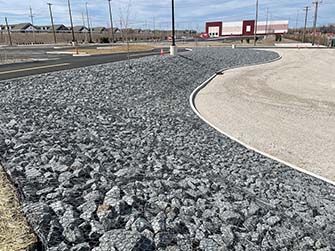

Gabion basket, also known as gabion cage, gabion mattress, it is a mattress shaped container made of high quality hot dipped galvanized wire or PVC wire to form flexible and effective surface protection against erosion and scouring.
Product Description

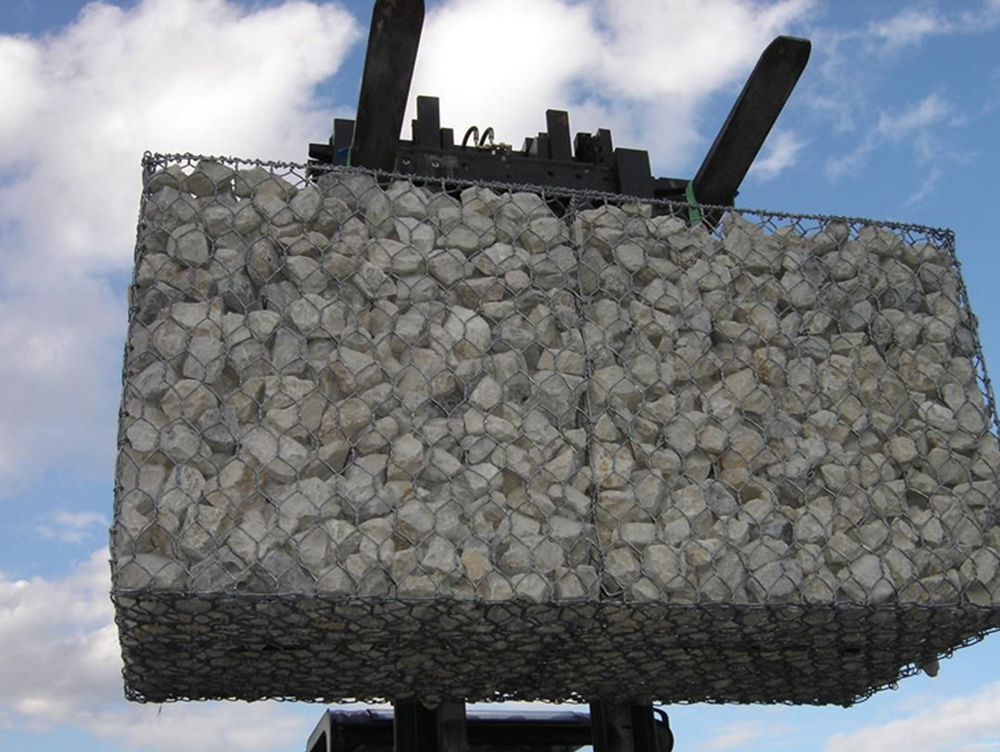

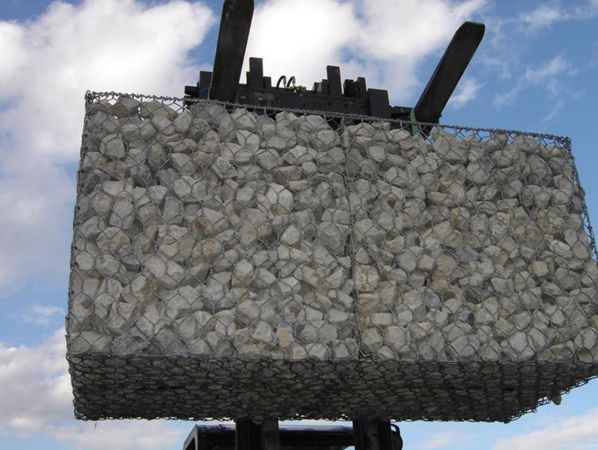

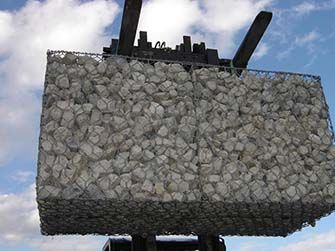

Gabion basket, also known as gabion cage, gabion mattress, it is a mattress shaped container made of high quality hot dipped galvanized wire or PVC wire to form flexible and effective surface protection against erosion and scouring. Flexible wire mesh can withstand large deformation without damage. The base and sides of the mattress are made of woven wire mesh. The diaphragm is made of the same wire mesh as the main panel and is attached to the bottom of the main panel, dividing the gabion cage mattress into different units. The lid is made of the same wire mesh as the main panel, and can be either a single sheet or a roll of a specified length
Gabion basket have two kinds of surface treatment, hot dipped galvanized and PVC coated.

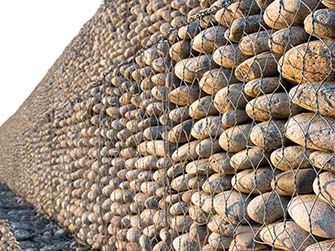

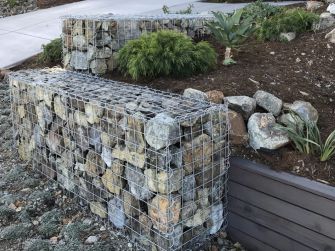

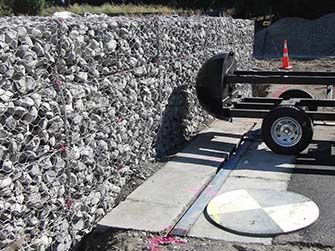

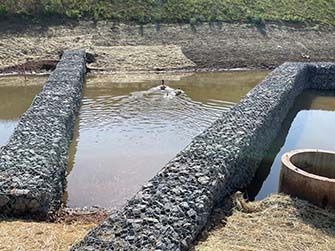

There are many different applications for welded gabion: gabion planter, gabion wall, gabion mattress, benches, slope protection, military defense, road protection, landscape construction.etc.
Features:
● With diaphragm: In order to avoid the deformation of the gabion cage by stones, the diaphragm can be added to the gabion cage to strengthen it, so that the gabion cage can maintain a good appearance.
● Customization: Any size L*W*H, surface treatment and installation way can be customized,
● Easy to install: The gabion basket is very easy to install, and we will provide installation tools and instructions for you.
● Durability: Use high tensile wire with long life span, it is Very strong and durable.
Specification
| Size (m) | Mesh Opening | Wire diameter(mm) | Diaphragm(unit) | ||||
| Length | Width | Height | Mesh wire | Selvage wire | Tie wire | ||
| 2.0 | 1.0 | 0.15-0.3 | 60*80mm 80*100mm | 2.0 2.2 2.4 2.8 3.0 | 2.4 2.7 3.0 3.4 3.9 | 2.0 2.0 2.0 2.2 2.4 | 1 |
| 3.0 | 1.0 | 0.15-0.3 | 2 | ||||
| 4.0 | 1.0 | 0.15-0.3 | 3 | ||||
| 1.0 | 1.0 | 0.5 | 0 | ||||
| 1.0 | 1.0 | 1.0 | 0 | ||||
| 2.0 | 1.0 | 0.5 | 1 | ||||
| 2.0 | 1.0 | 1.0 | 1 | ||||
| 3.0 | 1.0 | 1.0 | 2 | ||||
| 3.0 | 1.0 | 0.5 | 2 | ||||
| 4.0 | 1.0 | 1.0 | 3 | ||||
| Surface treatment: Hot dipped galvanized, galvanized +PVC coated | |||||||
| Note: If you want other specification, we can also customized for you | |||||||
