3D Welded Mesh Fence
Product description

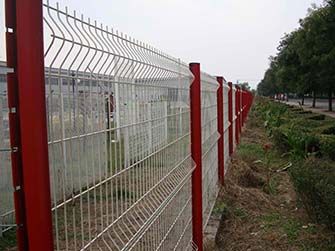

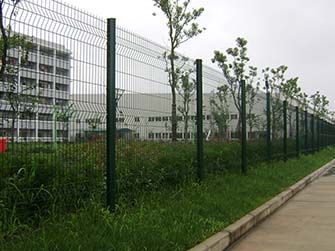

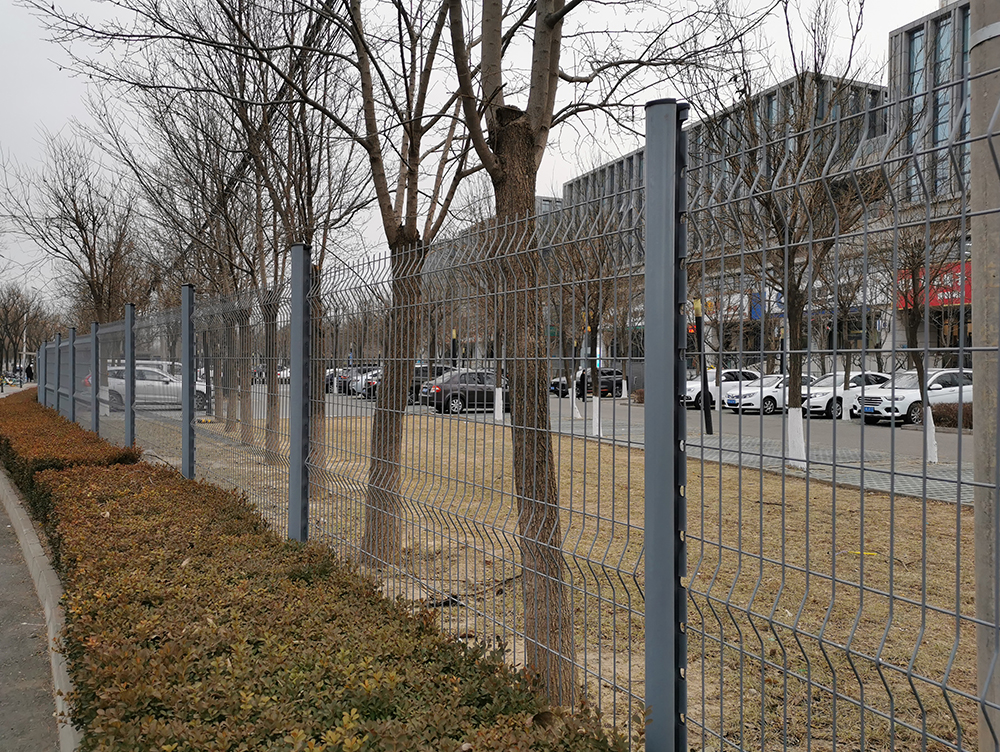

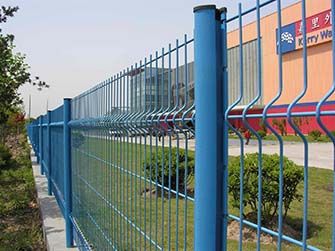

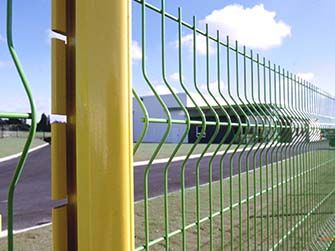

Peach Post Fence, also known as peach type fence, welded wire mesh fence, 3D wire mesh fence, triangle mesh fence. The fence panel have “V” shaped bends, that could provide additional strength and rigidity, “V” bends can also increase the beauty of Peach Post Fence, and the price of Peach Post Fence is very economical, so it is very popular and widely used in schools, apartments, factories, parks and other places.
Peach Post Fence are welded from high-quality low carbon steel wire, very strong and durable. There are three kinds of surface treatment of the mesh: hot dip galvanized, PVC coated, Powder coated. The most popular colors are black and green, other RAL colors also can be customized.
Features:
● Strength and rigidity: The fence panel have “V” shaped bends, that could provide additional strength and rigidity.
● Beautiful appearance : The "V" shaped bends made the security fence attractive.
● Visibility: The mesh opening is big, so the fence protect against theft and vandalism in the meantime can monitor the external situation.
● Anti-corrosion: There are three kinds of popular surface treatment: hot dip galvanized, PVC coated, Powder coated, our workmanship is exquisite, and the coating is made of high-quality brand powder, which can guarantee that the fence will not rust for 20 years in normal environment.
● Suitable for slopes: Our fence can be adapted to any terrain, if your sites are not flat, such as slopes, it will be very easy to install if use our fence.
Peach Post Fence Panel

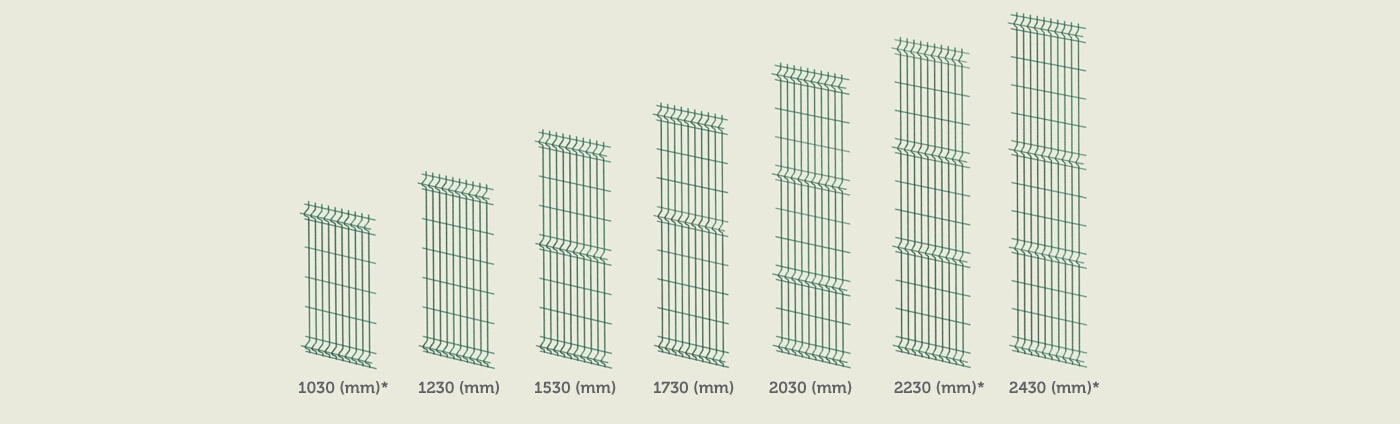

The width of panel is 2m-3m, the heights ranging from 600mm to 2440mm, the number of bends varies according to the height of the fence, below is the normal number of bends of different heights.

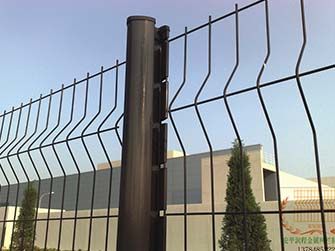

Peach Post Fence Post
There are 2 kinds of installation manner:
1. The post are longer 500mm-800mm than the fence panel, and buried 500mm-800mm post under ground, and the pouring concrete to fix post.
2. Welded the base plate on the bottom of the post, use the expansion screws fix post on concrete base.
Specification
| Mesh Opening | Wire Diameter | Panel Width | Panel Height | Number Of Folds | Post Type |
| 50*100mm 50*150mm 50*200mm 55*150mm 55*200mm | 3.0mm 3.5mm 4.0mm 4.5mm 5.0mm | 2.0m 2.2m 2.5m 2.9m | 630mm | 2 | Peach Post 50*70mm*1-2mmT 70*100mm*1-2mmT |
| 830mm | 2 | ||||
| 1030mm | 2 | ||||
| 1230mm | 2 | ||||
| 1430mm | 2 | ||||
| 1530mm | 3 | ||||
| 1630mm | 3 | ||||
| 1730mm | 3 | ||||
| 1830mm | 3 | ||||
| 1930mm | 3 | ||||
| 2030mm | 4 | ||||
| 2230mm | 4 | ||||
| 2430mm | 4 | ||||
| Surface treatment: Hot dipped galvanized, galvanized +PVC coated, galvanized+powder coated | |||||
| Hot color: RAL 6005 green, RAL9005 black. All RAL color can be customized | |||||
| Note: If you want other specification, we can also customized for you | |||||
