3D Welded Mesh Fence
| Budget | ★★☆☆☆ |
| Security Level | ★★★★☆ |
| Ease of Installation | ★★★★☆ |
6 standard colours, 200 RAL Colours, matt and textured finishes
Material: Low carbon steel wire
Height: 1-3m
Width: 2-3m
Surface treatment: Hot dipped galvanized, PVC coated, Powder coated
Certificates: ISO9001
Product Description
3D Welded Mesh Fence, also known as welded wire mesh fence, curvy welded fence, 3D wire mesh fence, triangle mesh fence. The fence panel have "V" shaped bends, that could provide additional strength and rigidity, "V" bends can also increase the beauty of 3D Welded Mesh Fence, and the price of 3D Welded Mesh Fence is very economical, so it is very popular and widely used in schools, apartments, factories, parks and other places.
3D Welded Mesh Fence are welded from high-quality low carbon steel wire, very strong and durable. There are three kinds of surface treatment of the mesh: hot dip galvanized, PVC coated, Powder coated. The most popular colors are black and green, other RAL colors also can be customized.
Features:
● Strength and rigidity: The fence panel have “V” shaped bends, that could provide additional strength and rigidity.
● Beautiful appearance : The "V" shaped bends made the security fence attractive.
● Visibility: The mesh opening is big, so the fence protect against theft and vandalism in the meantime can monitor the external situation.
● Anti-corrosion: There are three kinds of popular surface treatment: hot dip galvanized, PVC coated, Powder coated, our workmanship is exquisite, and the coating is made of high-quality brand powder, which can guarantee that the fence will not rust for 20 years in normal environment.
● Suitable for slopes: Our fence can be adapted to any terrain, if your sites are not flat, such as slopes, it will be very easy to install if use our fence.
3D Welded Mesh Fence Panel

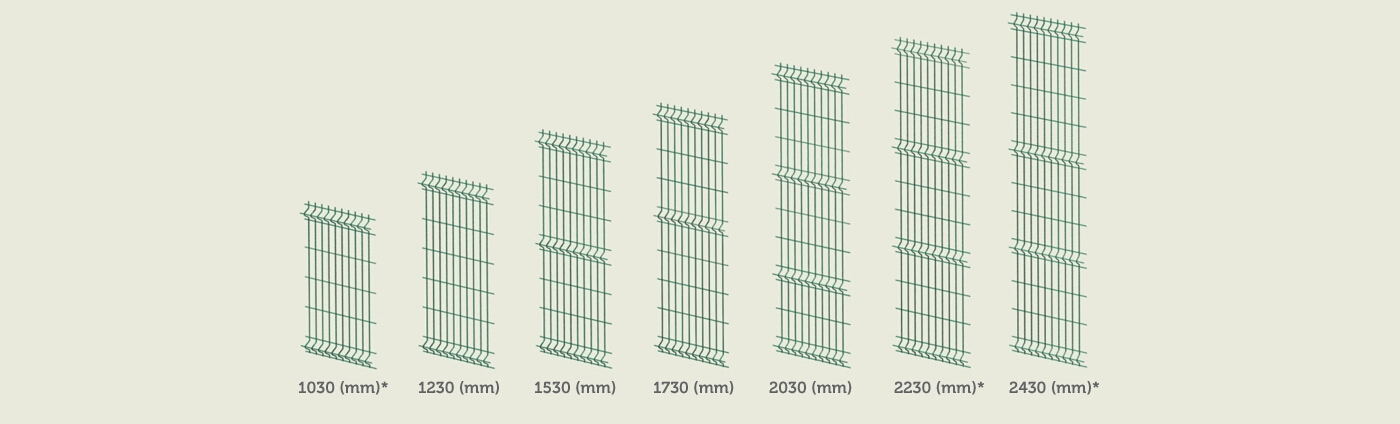

The width of panel is 2m-3m, the heights ranging from 600mm to 2440mm, the number of bends varies according to the height of the fence, below is the normal number of bends of different heights.
3D Welded Mesh Fence Post
There are 2 kinds of installation manner:
1. The post are longer 500mm-800mm than the fence panel, and buried 500mm-800mm post under ground, and the pouring concrete to fix post.
2. Welded the base plate on the bottom of the post, use the expansion screws fix post on concrete base.
Specification
| Mesh Opening | Wire Diameter | Panel Width | Panel Height | Number Of Folds | Post Type | ||
| 50*100mm 50*150mm 50*200mm 55*150mm 55*200mm | 3.0mm 3.5mm 4.0mm 4.5mm 5.0mm | 2.0m 2.2m 2.5m 2.9m | 630mm | 2 | Round Post 48mmOD*1-2mmT 60mmOD*1-2mmT | Square Post 50*50mm*1-2mmT 60*60mm*1-2mmT 80*80mm*1-2mmT | Rectangular Post 40*60mm*1-2mmT 40*80mm*1-2mmT 60*80mm*1-2mmT |
| 830mm | 2 | ||||||
| 1030mm | 2 | ||||||
| 1230mm | 2 | ||||||
| 1430mm | 2 | ||||||
| 1530mm | 3 | ||||||
| 1630mm | 3 | ||||||
| 1730mm | 3 | ||||||
| 1830mm | 3 | ||||||
| 1930mm | 3 | ||||||
| 2030mm | 4 | ||||||
| 2230mm | 4 | ||||||
| 2430mm | 4 | ||||||
| Surface treatment: Hot dipped galvanized, galvanized +PVC coated, galvanized+powder coated | |||||||
| Hot color: RAL 6005 green, RAL9005 black. All RAL color can be customized | |||||||
| Note: If you want other specification, we can also customized for you | |||||||

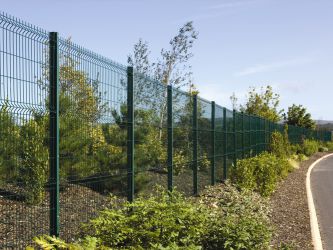

Hero Perimeter Fencing

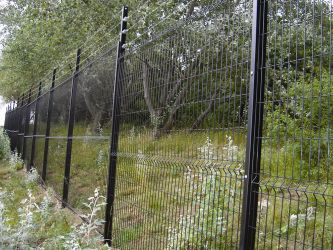

3D Welded Mesh Fence

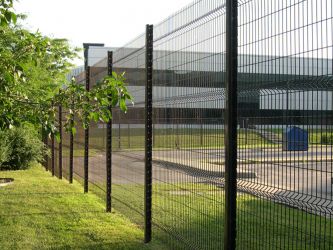

3D Welded Mesh Fence

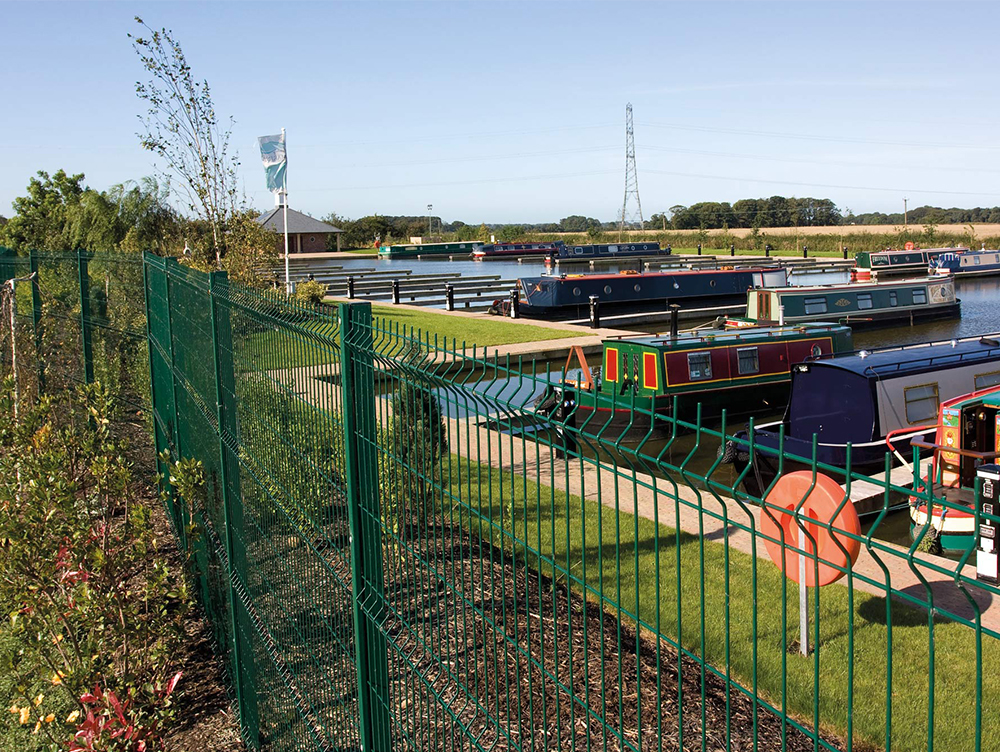

Omega Fence Architectural Commercial

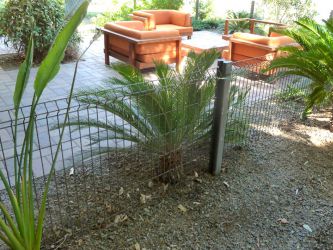

Omega Fence Architectural Residential

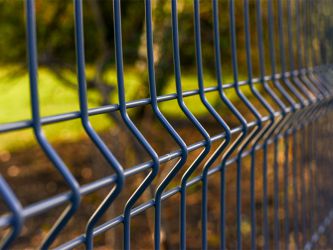

Euroguard Regular V Mesh Fence Detail

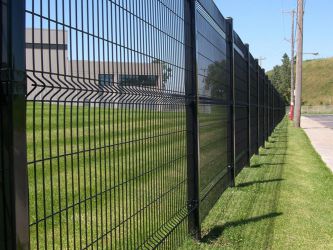

Omega Fence Architectural Commercial
